Standard Packaging List
1. Alarm * 1
2. Instruction manual * 1
Item | Parameter |
Decibel | >85dB(3m) |
Working voltage | DC3V |
Static current | ≤15uA |
Alarm current | ≤120mA |
Low battery | 2.6±0.1V |
Operation temperature | -10℃～55℃ |
Relative Humidity | ≤95%RH (40℃±2℃ Non‑condensing) |
Note | The failure of the one indicator lights does not affect the normal use of the alarm |
Alarm LED light | Red |
Output form | Audible and Visual alarm |
Battery model | CR123A 3V |
Battery capacity | about 1600mAh |
Silent time | About 15 minutes |
Standard | EN 14604:2005； EN 14604:2005/AC:2008 |
Battery life | about 10 years (There may be differences due to different usage environments) |
N.W | 135g (Contains battery) |
It is not suitable for use in the following places:
(5)The product cannot be installed in the corner of the building.
Installation and Test
For general places, when the space height is less than 6m, the alarm with a protection area of 60㎡. The alarm shall be mounted on the ceiling.
1. Remove the ceiling mount.
Rotate the alarm anticlockwise out of the ceiling mount
2. Drill two holes with a spacing of 80mm on the ceiling with a suitable drill, and then stick the included anchors in the holes and mount the ceiling install with both screws.
3. Press the TEST / HUSH button, smoke alarm will alarm and LED flash.
If not: Please check the power switch is ON or not and the battery voltage is too low (less than 2.6V ±0.1V).
4. After testing, simply screw the alarm in the ceiling mount until you hear a "click".
Turn the alarm clockwise until you hear a "click"
Installation instructions

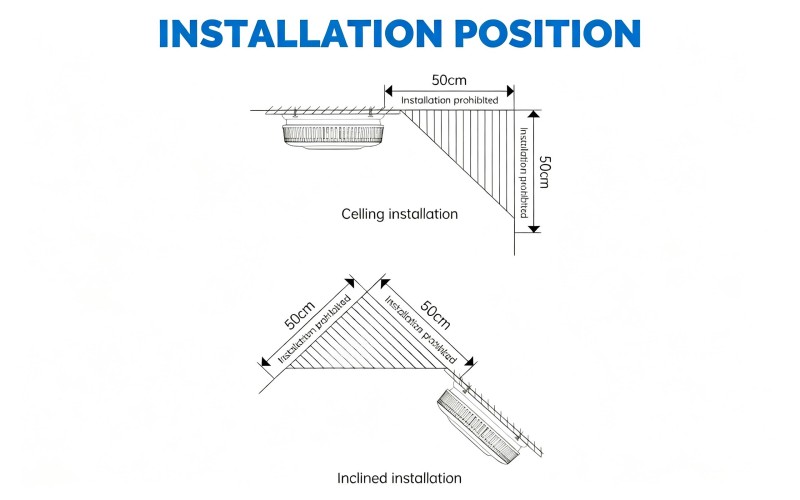

The alarm can be installed on the ceiling or tilted. If it is to be installed on sloping or diamond‑shaped roofs, the tilt Angle should not be greater than 45° and a distance of 50cm is preferable.
